| Basic Parameters: |
CVSHL5W |
CVSHL5WU |
| Display Technology |
3LCD x 0.59" Sony Policilicon
3LCD x 0.64" Sony Policilicon |
3LCD x 0.64" Sony Policilicon |
| Native Resolution |
WGA/ 1280 x 800 Pixels(CVSHL5AW)
WUXGA/ 1920 x1200 Pixels(CVSHL5AX) |
WUXGA/ 1920 x1200 Pixels(CVSHL5AX) |
| Max. Computer Input |
UXGA |
UXGA |
| Brightness |
5300 ANSI Lumens (Std) |
5000 ANSI Lumens (Std) |
| Zoom Ratio |
n/a |
| Contrast |
5000:1 Contrast Ratio by VGA terminals,dynamic contrast ratio up to 10000:1 |
| Noise Level |
20/45dB (ECO/BRIGHT mode) |
| Aspect Ratio |
16:10 Native, 16:9 Compatible |
| Projection Method |
Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip |
| Weight |
6 kg |

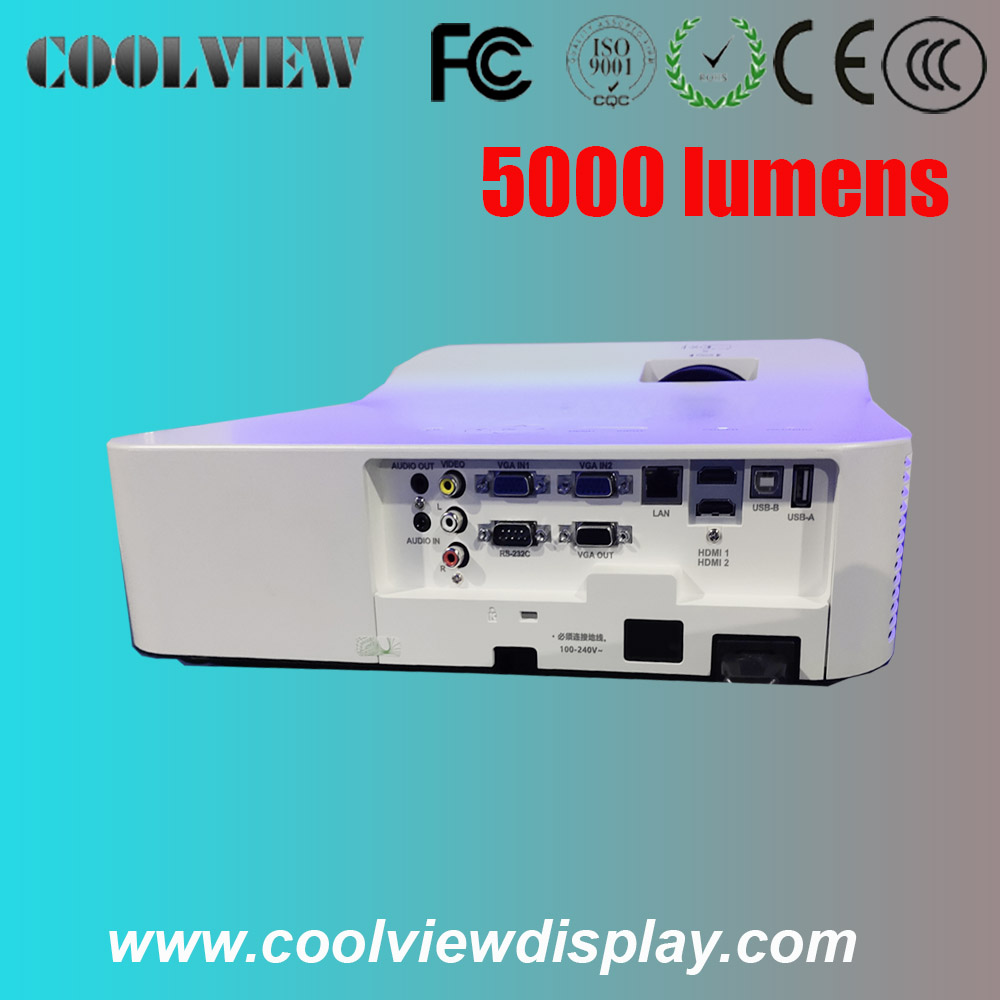

| I/O Connectors |
Inputs: |
1-HDMI in MHL, 1-HDMI, Audio: 3.5 Mini-Jack,
Video, 2-VGA, YCbCr/Component/S-Video (Share with VGA in 1)
USB-A (Support memeory viewer/optional Wifi dongle)
2-Audio-In (L/R), USB-B, RJ45 |
| Outputs: |
VGA Out x 1,Audio output x 1 |
| Control: |
RS232 x 1 |
| Preset Mode |
PC: |
For computer or notebook (Brightest image) |
| Movie: |
Maximum contrast and Colour accuracy |
| Game: |
Bright vivid colour |
| sRGB: |
For Standard PC Colour (Best Colour Reproductiion) |
| User: |
Memorises user's settings |
| Maximum Resolution |
UXGA 1600 x 1200 Pixels via HDMI |
| Projection Lens |
0.41:1 |
| Throw Ratio |
100’‘ at 0.81 m , |
| Projection Screen Size |
0.3m - 4m（30"~300"）Diagonal 16:10 |
| Projection Distance |
09 - 5 metres |
| Horizontal Lens Shift |
n/a |
| Vertical Lens Shift |
n/a |
| Lamp Type/Lamp Life |
HLD 20,000-40,000 Hours |
| Keystone Correction |
± 20° Vertical H:±15° (manual) Corner Keystone |
| Dimensions (W x D x H) |
365mm*365mm*140mm |
| Remote Control |
Full function remote with direct source selecting |
| Power Supply |
100-240V, 50-60Hz |
| Power Consumption |
490W Max |
| Operating Conditions |
-10°C - 60°C, Max. Humidity 85%, Max. Altitude 3000m |
| Uniformity |
90% |
| Security |
Kensington Lock, Password Protection |
| Standard Accessories |
AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card |
| Optional Accessories |
 Ceiling Mount Kit, Additional Ultra long Cable |
| Warranty |
Projector 5-Years,lamp six months or 500Hrs |
